Jiebo Instrument

Located in Wuxi City, Jiangsu Province, China. For many years, they have been dedicated to the production, sale, and service of chemical analysis instruments and related products. They have advantages in product and service diversity, as well as in the process of technological innovation. With manufacturing inputs and experience abroad, and with manufacturing in China, they have exported to the Middle East, Africa, Asia, Europe, South America, and other countries.

The best in optical emission spectrometry, carbon and sulfur analysis

We build your analytical dreams

So that you can achieve your goals

Quality, not quantity

Optical emission spectrometers

JB-750 Precision

The JB-750 has high sensitivity of up to 1 ppm. Accuracy is very high, especially in the low elemental concentration range, which is less than 0.1%.

This testing method is much more reliable than other methods. It can perform simultaneous analysis of multiple elements.

The operation is simple and displays the test results in 60 seconds.

At a very low cost. There's no need for expensive chemical reagents or special accessories.

It also saves argon gas. A single argon gas cylinder can perform an average of 2,000 analyses.

Focal length: 750 mm

Detector: PMT

Optical: Paschen-Runge- Roland Circle

Nobel T7

Full spectrum adopts international standards of design and manufacturing technology.

It uses the most advanced CMOS signal acquisition device from the most internationally recognized Japanese manufacturer Hamamatsu Co.

Each CMOS can set the number of sparks separately.

It adopts a vacuum light chamber design and a full digital excitation light source.

Focal length: 401 mm

Detector: CMOS Hammamatsu Co.

Optical: Paschen-Runge- Roland Circle

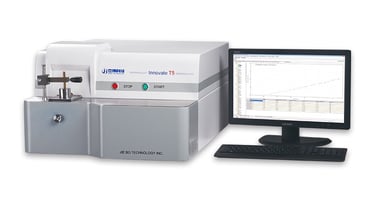

T5 Innovator

Full spectrum for small foundry work, adopts international standards of design and manufacturing technology.

It uses the most advanced CMOS signal acquisition device from the most internationally recognized Japanese manufacturer Hamamatsu Co.

Each CMOS can set the number of sparks separately.

It adopts a vacuum light chamber design and a full digital excitation light source.

Focal length: 401 mm

Detector: CMOS Hammamatsu Co.

Optica: Paschen-Runge- Roland Circle

Carbon and Sulfur Analyzers

CS 995

Benchtop analyzer for the determination of carbon and sulfur with induction furnace and infrared detectors.

Capable of reliably and accurately analyzing steel, iron, ferrous and non-ferrous alloys, cement, etc.

The team is integrated with products of the most advanced technology and high quality.

Measuring range:

Carbon: w(C) 0.0005% - 6.0000% (can be extended to 99.999%)

Sulfur: w(C) 0.0005% - 0.5000% (can be extended to 99.999%)

CS 996

Floor analyzer for the determination of carbon and sulfur with induction furnace and infrared detectors.

Capable of reliably and accurately analyzing steel, iron, ferrous and non-ferrous alloys, cement, etc.

The team is integrated with products of the most advanced technology and high quality.

Measuring range:

Carbon: w(C) 0.0001% - 10.0000% (can be extended to 99.999%)

Sulfur: w(C) 0.0001% - 3.5000% (can be extended to 99.999%)

CS 2020

• The CS2020 is specifically designed for the accurate determination of carbon and sulfur content in samples. It uses a high-frequency induction furnace to pass pure oxygen through combustion samples, is equipped with up to four highly sensitive infrared detection cells to determine carbon and sulfur content. The measuring range can be adjusted according to specific user requirements.

• CS2020 can simultaneously and reliably analyze carbon and sulfur elements at different contents in inorganic materials such  as iron and steel, cast iron, copper, minerals, cement, ceramics, glass, various non-ferrous metals, superalloys, etc.

• CS2020 provides simpler and easier-to-use operating software that includes features such as statistics, clustering, reporting, diagnostic tools, etc. For the basic analysis process.

Measuring range:

Carbon: (%): C1: 0.0002% ~ 0.5%, C2 0.1% ~ 50%

Sulfur: (%): S1: 0.0002% ~ 0.5%, S2: 0.1% ~ 50%

Sensitivity: C: 0.1 ppm, S: 0.1 ppm

Precision: C: 1 ppm o RSD ≤ 1.0 %

                S: 1 ppm o RSD  ≤ 1.5 %

Consumables

Standards

Quartz Tubes

Fluxes

Crucibles

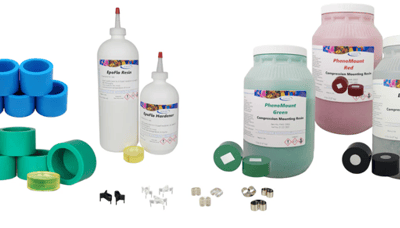

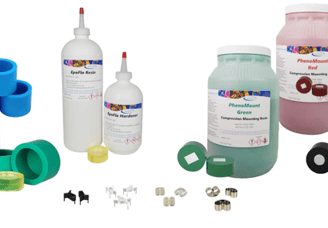

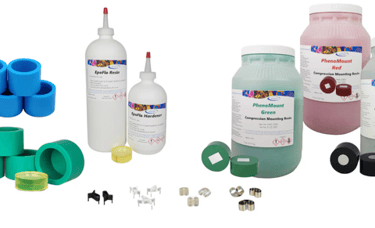

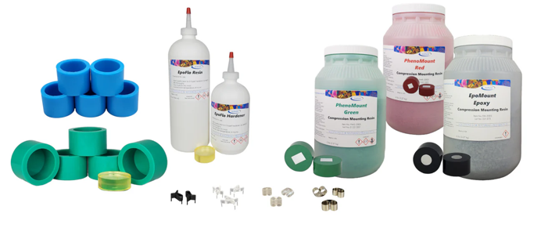

Phenolic mounting

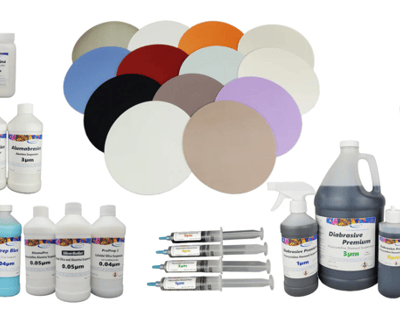

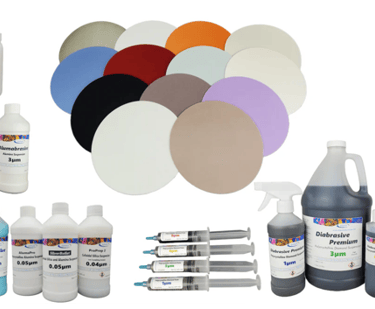

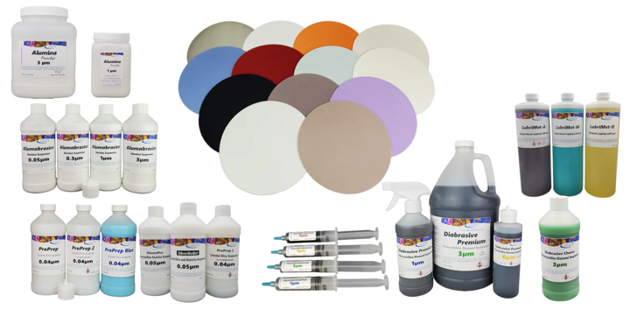

Metallography Consumables

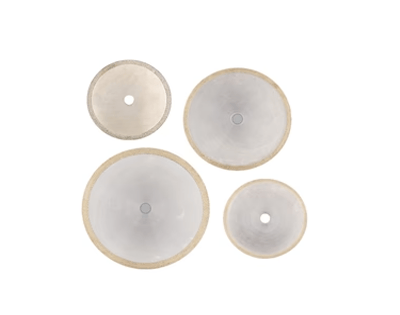

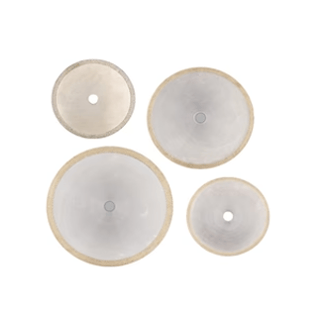

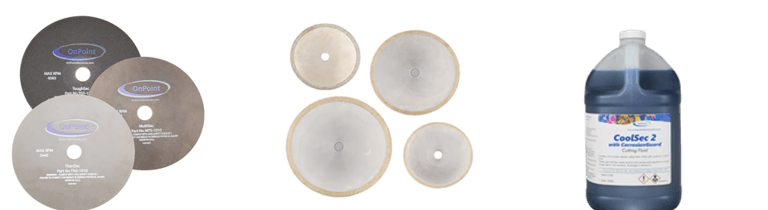

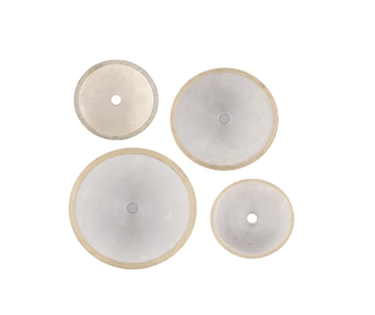

Cloths, grinding paper, Blades
